title: "Keycloak OIDC"
description: "Learn how to configure Keycloak OIDC for Infisical SSO."
---

<Info>
  Keycloak OIDC SSO is a paid feature. If you're using Infisical Cloud, then it
  is available under the **Pro Tier**. If you're self-hosting Infisical, then
  you should contact sales@infisical.com to purchase an enterprise license to
  use it.
</Info>

<Steps>
   <Step title="Create an OIDC client application in Keycloak">
      1.1. In your realm, navigate to the **Clients** tab and click **Create client** to create a new client application.

      ![OIDC keycloak list of clients](../../../images/sso/keycloak-oidc/clients-list.png)

      <Info>
         You don’t typically need to make a realm dedicated to Infisical. We recommend adding Infisical as a client to your primary realm.
      </Info>

      1.2. In the General Settings step, set **Client type** to **OpenID Connect**, the **Client ID** field to an appropriate identifier, and the **Name** field to a friendly name like **Infisical**.

      ![OIDC keycloak create client general settings](../../../images/sso/keycloak-oidc/create-client-general-settings.png)

      1.3. Next, in the Capability Config step, ensure that **Client Authentication** is set to On and that **Standard flow** is enabled in the Authentication flow section.

      ![OIDC keycloak create client capability config settings](../../../images/sso/keycloak-oidc/create-client-capability.png)

      1.4. In the Login Settings step, set the following values:
      - Root URL: `https://app.infisical.com`.
      - Home URL: `https://app.infisical.com`.
      - Valid Redirect URIs: `https://app.infisical.com/api/v1/sso/oidc/callback`.
      - Web origins: `https://app.infisical.com`.

      ![OIDC keycloak create client login settings](../../../images/sso/keycloak-oidc/create-client-login-settings.png)
      <Info>
         If you’re self-hosting Infisical, then you will want to replace https://app.infisical.com (base URL) with your own domain.
      </Info>

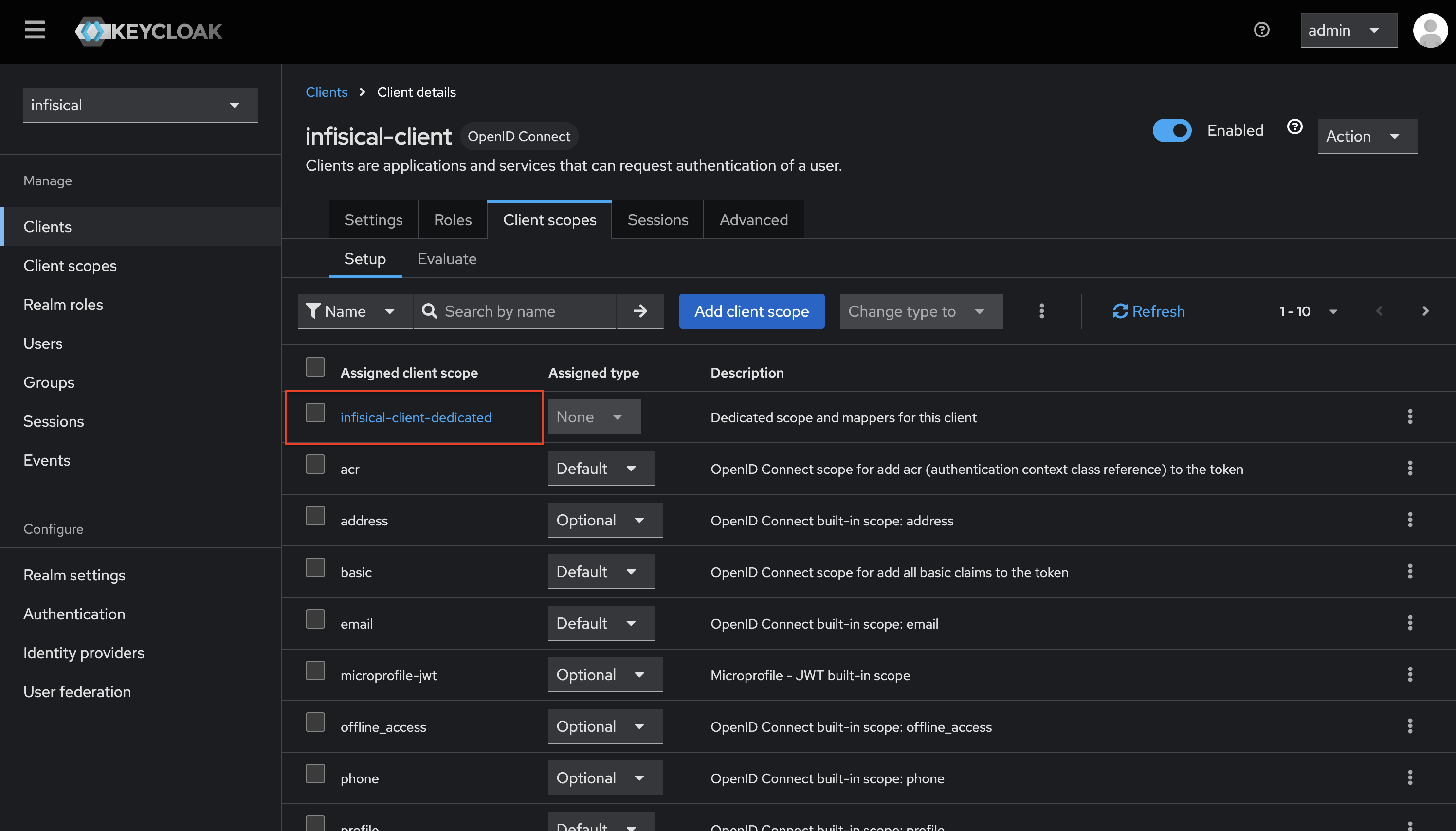

      1.5. Next, navigate to the **Client scopes** tab and select the client's dedicated scope.

      ![OIDC keycloak client scopes list](../../../images/sso/keycloak-oidc/client-scope-list.png)

      1.6. Next, click **Add predefined mapper**.

      ![OIDC keycloak client mappers empty](../../../images/sso/keycloak-oidc/client-scope-mapper-menu.png)

      1.7. Select the **email**, **given name**, **family name** attributes and click **Add**.

      ![OIDC keycloak client mappers predefined 1](../../../images/sso/keycloak-oidc/scope-predefined-mapper-1.png)
      ![OIDC keycloak client mappers predefined 2](../../../images/sso/keycloak-oidc/scope-predefined-mapper-2.png)

      Once you've completed the above steps, the list of mappers should look like the following:
      ![OIDC keycloak client mappers completed](../../../images/sso/keycloak-oidc/client-scope-complete-overview.png)

   </Step>
   <Step title="Retrieve Identity Provider (IdP) Information from Keycloak">
      2.1. Back in Keycloak, navigate to Configure > Realm settings > General tab > Endpoints > OpenID Endpoint Configuration and copy the opened URL. This is what is to referred to as the Discovery Document URL and it takes the form: `https://keycloak-mysite.com/realms/myrealm/.well-known/openid-configuration`.
      ![OIDC keycloak realm OIDC metadata](../../../images/sso/keycloak-oidc/realm-setting-oidc-config.png)

      2.2. From the Clients page, navigate to the Credential tab and copy the **Client Secret** to be used in the next steps.
      ![OIDC keycloak realm OIDC secret](../../../images/sso/keycloak-oidc/client-secret.png)

   </Step>
   <Step title="Finish configuring OIDC in Infisical">
      3.1. Back in Infisical, in the Organization settings > Security > OIDC, click Manage
      ![OIDC keycloak manage org Infisical](../../../images/sso/keycloak-oidc/manage-org-oidc.png)

      3.2. For configuration type, select Discovery URL. Then, set the appropriate values for **Discovery Document URL**, **Client ID**, and **Client Secret**.
      ![OIDC keycloak paste values into Infisical](../../../images/sso/keycloak-oidc/create-oidc.png)

      Once you've done that, press **Update** to complete the required configuration.

   </Step>
   <Step title="Enable OIDC SSO in Infisical">
      Enabling OIDC SSO allows members in your organization to log into Infisical via Keycloak.

      ![OIDC keycloak enable OIDC](../../../images/sso/keycloak-oidc/enable-oidc.png)

   </Step>
</Steps>

<Note>
  If you're configuring OIDC SSO on a self-hosted instance of Infisical, make
  sure to set the `AUTH_SECRET` and `SITE_URL` environment variable for it to
  work: - `AUTH_SECRET`: A secret key used for signing and verifying JWT. This
  can be a random 32-byte base64 string generated with `openssl rand -base64
  32`. - `SITE_URL`: The URL of your self-hosted instance of Infisical - should
  be an absolute URL including the protocol (e.g. https://app.infisical.com)
</Note>
